    POWERED BY LABCUT 5000®

    Speed. Safety. Precision.

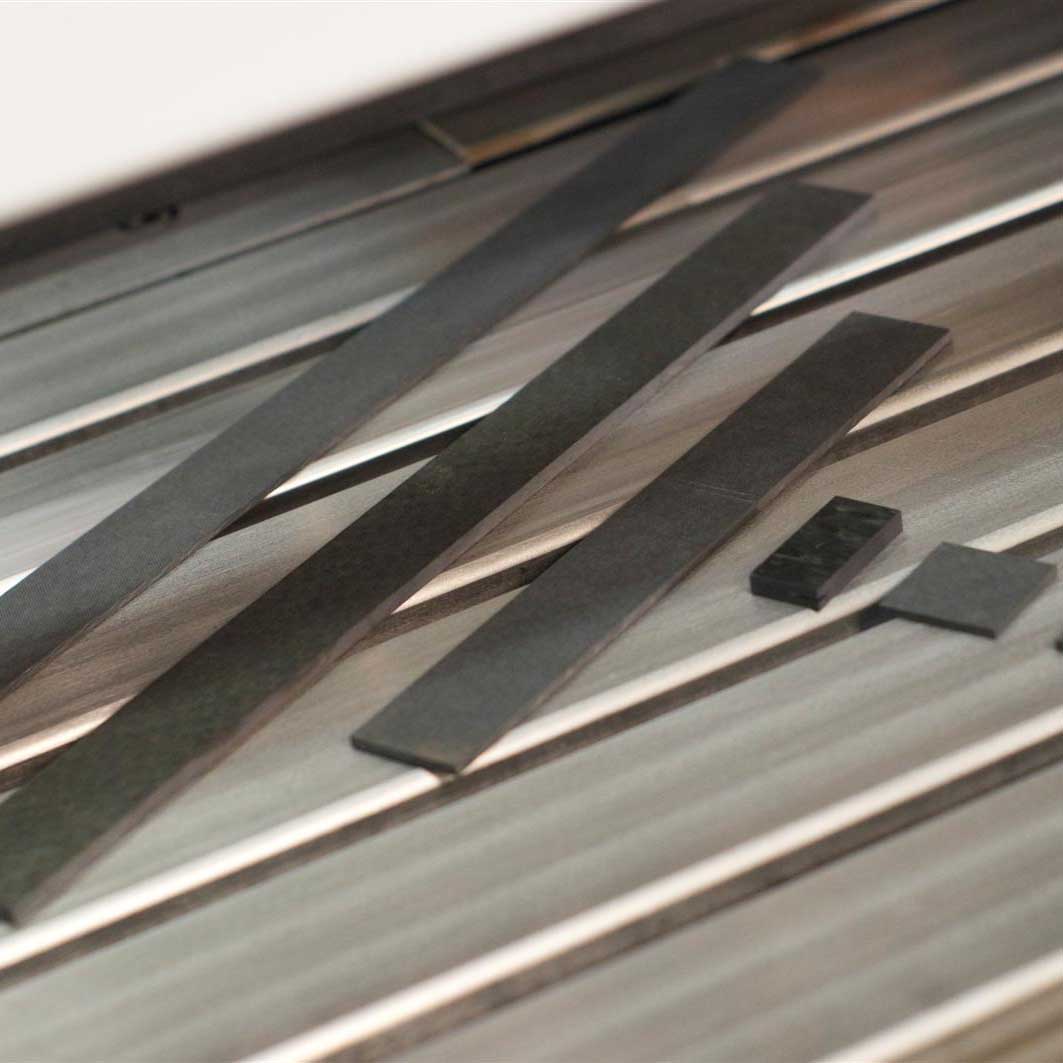

    Labcut 5000® advanced composite plate saws achieve precision cutting in a diverse range of materials to prepare highly accurate composite test specimens.

    50282

    Cleared Panel Size:

    600 x 600 mm (2 x 2 ft)

    Blade Size (Dia.) | Cutting Speed:

    250 - 400 mm, 0.1 - 40 mm/s (10 - 16 in.)

    50484

    Cleared Panel Size:

    1250 x 1250 mm (4 x 4 ft)

    Blade Size (Dia.) | Cutting Speed:

    250 - 400 mm, 0.1 - 40 mm/s (10 - 16 in.)

    Precision Cutting of Composite Materials

    The Labcut 5000® Series is designed specifically for cutting and testing composite materials with automation that saves time and improves results. The CNC fence allows multiple specimen cuts without user intervention.

    With its stainless-steel internal cladding and encased components, the Labcut 5000® series is designed to withstand harsh working environments. Large access doors make it easy to clean and maintain. The rugged chassis provides a stable platform for highly accurate cutting.

    The Advantages

    The Labcut 5000® eliminates many of the common problems associated with test specimen manufacturing.

    Poor Parallelism and Perpendicularity

    Micro-Cracking

    Cutting Mark Defects

    Surface Finish Variations

    Heat Degradation

    Un-safe Cutting & Ventilation Environments

    CNC Material Fence

    • Pneumatic sheet clamps built-in for securing the laminate
    • Automatic positioning for accurate cutting
    • Dual driven for perpendicularity
    • Repeatable

    Cross-Cut Carriage

    • Rigidity of X-axis assembly provides superior surface finish
    • Clear working area with cutting head below the table
    • Easy blade change
    • Servo-driven ball screw provides smooth and accurate cutting feed

    Bar Clamp with Coolant

    • Both laminate and cut specimen are secured during the cutting process
    • Automatic operation
    • Constant flood cooling across entire cut length
    • Bag-based filter system for easy maintenance

    User Interface Control System

    • Conversational CNC permits ease of use
    • Part-programmable for automatic machining
    • Material parameters store best feed and spindle speeds for each laminate
    • Remote support available

    Safe Working Environment

    • Fully enclosed work area
    • Connection to external dust extractor
    • CE marked to relevant standards
    • Fully interlocked system

    Seeing is Believing

    These micrographs show the cut surface at different magnifications, taken from the Labcut 5000® and without further processing.

    Magnification 50x
    Magnification 200x
